FIG. 2 — Safety Hardware

Child Safety Garbage Disposal Switch Cover

A switch cover that needs two deliberate motions — press, then slide — to run the disposal.

The white child-safety cover installed over a toggle switch on a standard wall plate, its button at the top and sliding carriage below. — FIG. 2aInstalled. The carriage sits over the toggle; the button at the top is the release.

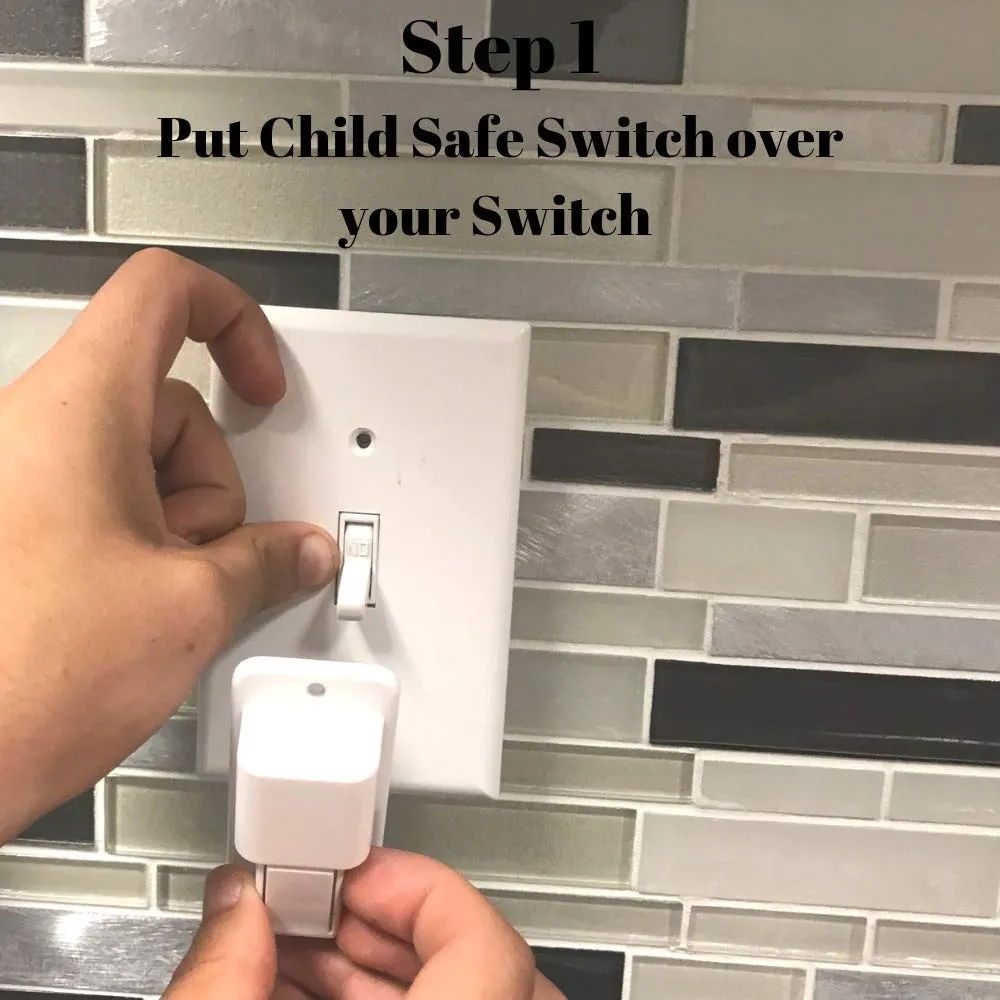

A hand positioning the white cover over an existing toggle switch on a tiled kitchen wall. — FIG. 2bStep 1 — the cover seats over the switch already in the wall.

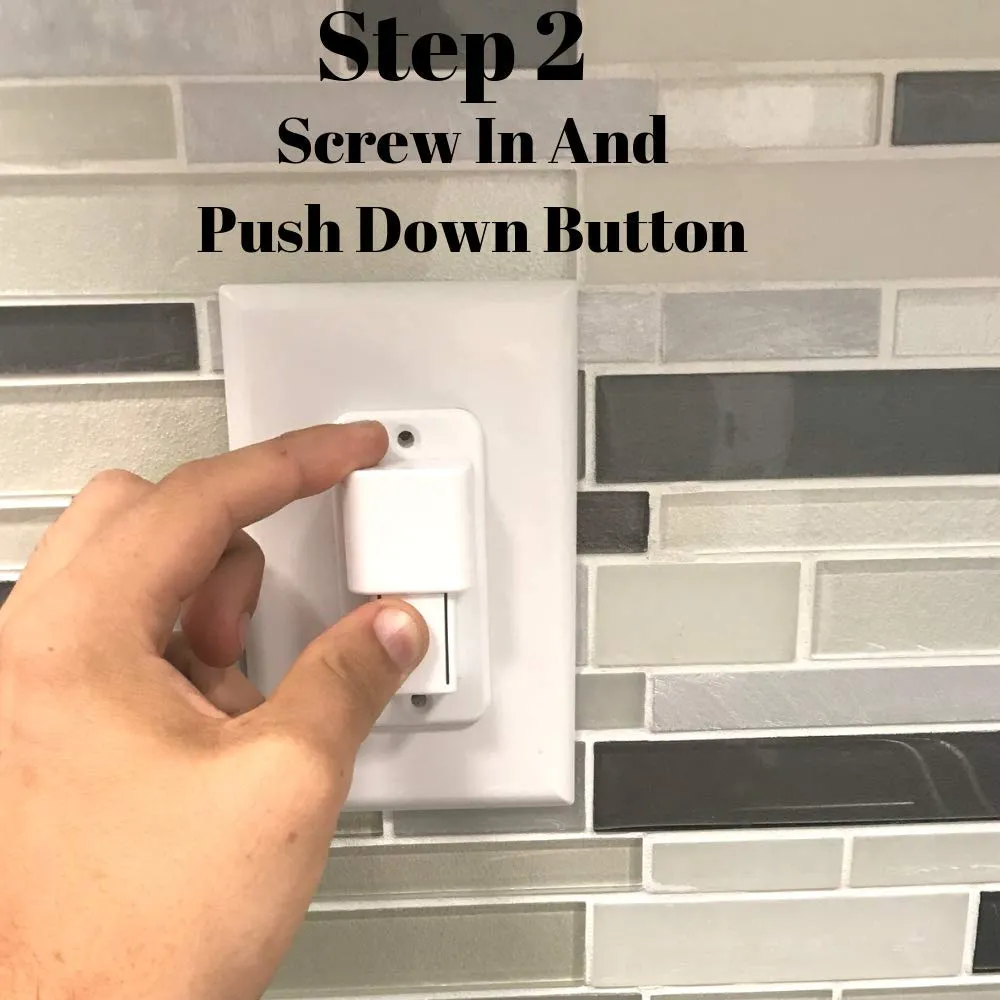

A hand pressing the button on the installed cover with the index finger. — FIG. 2cStep 2 — existing plate screws hold it; pressing the button releases the carriage.

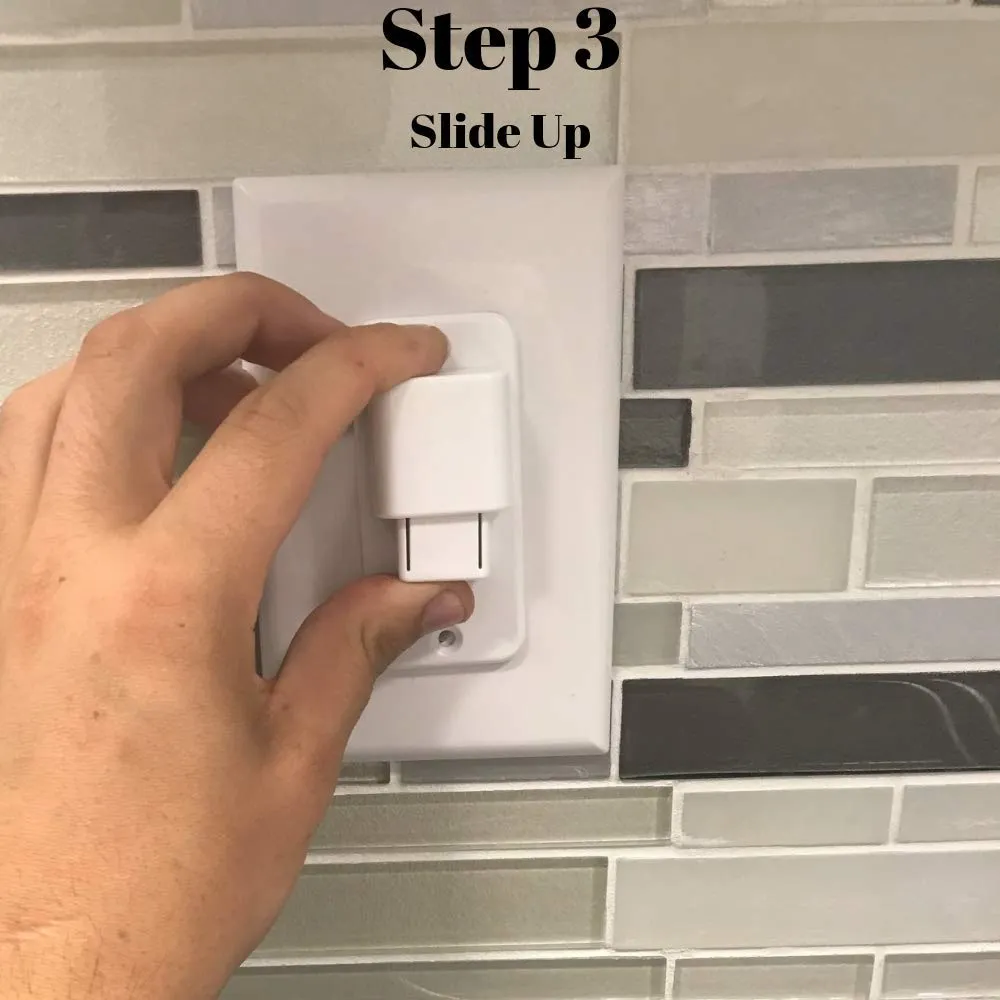

A hand sliding the carriage upward to switch the disposal on. — FIG. 2dStep 3 — slide up to run. Two motions, different axes, one hand.

FIG. 2a
FIG. 2b
FIG. 2c
FIG. 2d

[ 01 ]

The Problem

The disposal switch is the one control in a kitchen mounted at a child’s reach, that does something violent, and that looks exactly like a light switch. A child flipping it while a hand — or a fork, or the dog’s bowl — is in the drain is the failure mode every parent pictures immediately.

[ 02 ]

The Constraint

A lockbox fails on adoption: anything that makes the switch annoying for the adult who uses it forty times a week gets removed within a month. So the target was not maximum security but the highest resistance a child cannot defeat while staying effortless for an adult. The answer was to require two motions in different axes at once — press the button in, then slide the carriage up. Either motion alone does nothing. Adults learn it in one try and stop thinking about it; the combination is beyond a toddler’s grip strength and sequencing.

[ 03 ]

The Result

A cover that mounts over the existing switch using the plate screws already in the wall, changes nothing about how an adult cooks, and needs no electrical work.
