FIG. 1 — Safety Hardware

Hose Spigot Childproof System

A replacement spigot handle with no handle — the water only turns on with a key.

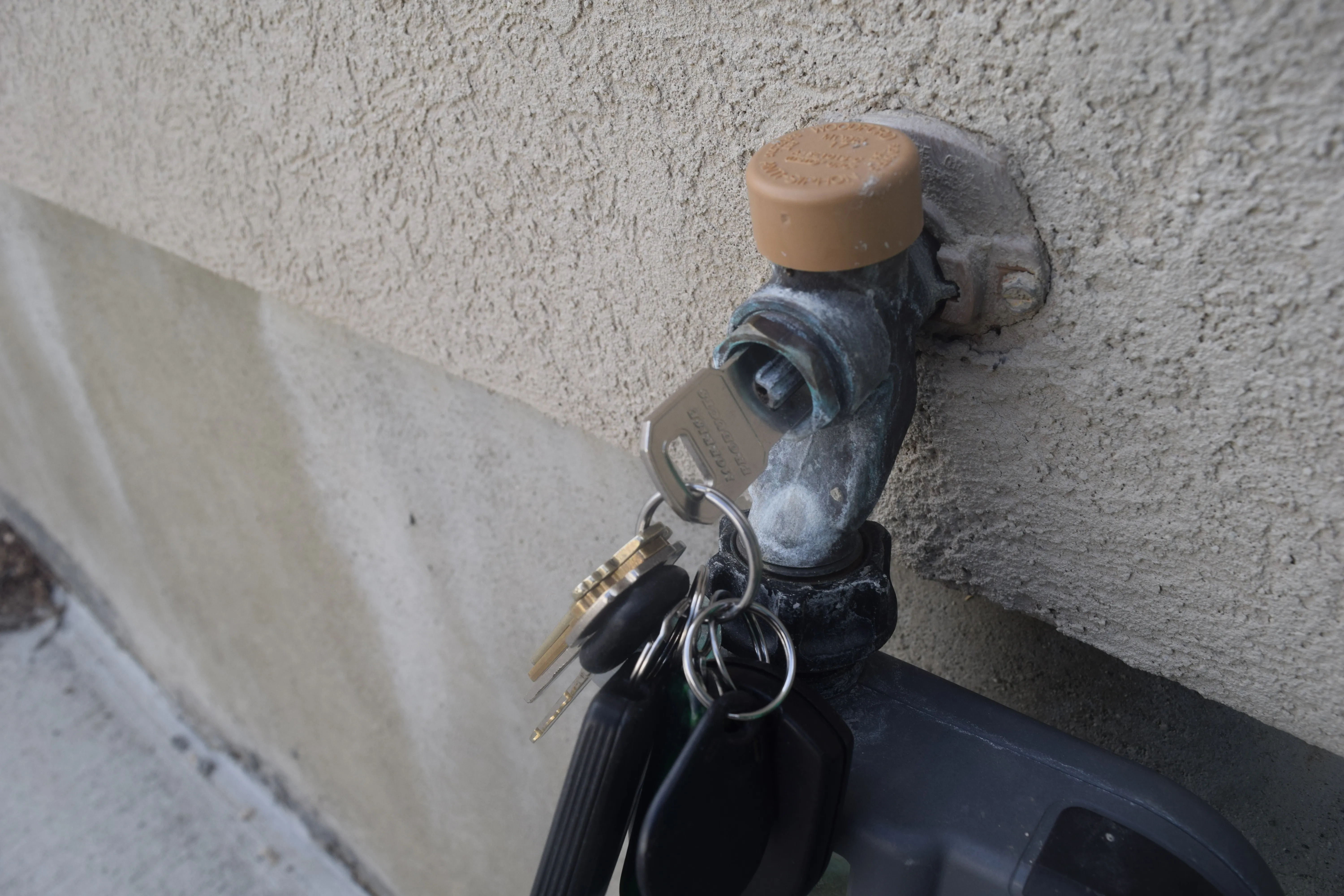

The tan replacement cap installed on an outdoor hose spigot against a stucco wall, with the steel key inserted into the stem and a loaded keyring hanging from it. — FIG. 1aInstalled, with the key engaged. The cap sits flush; there is nothing left to grip.

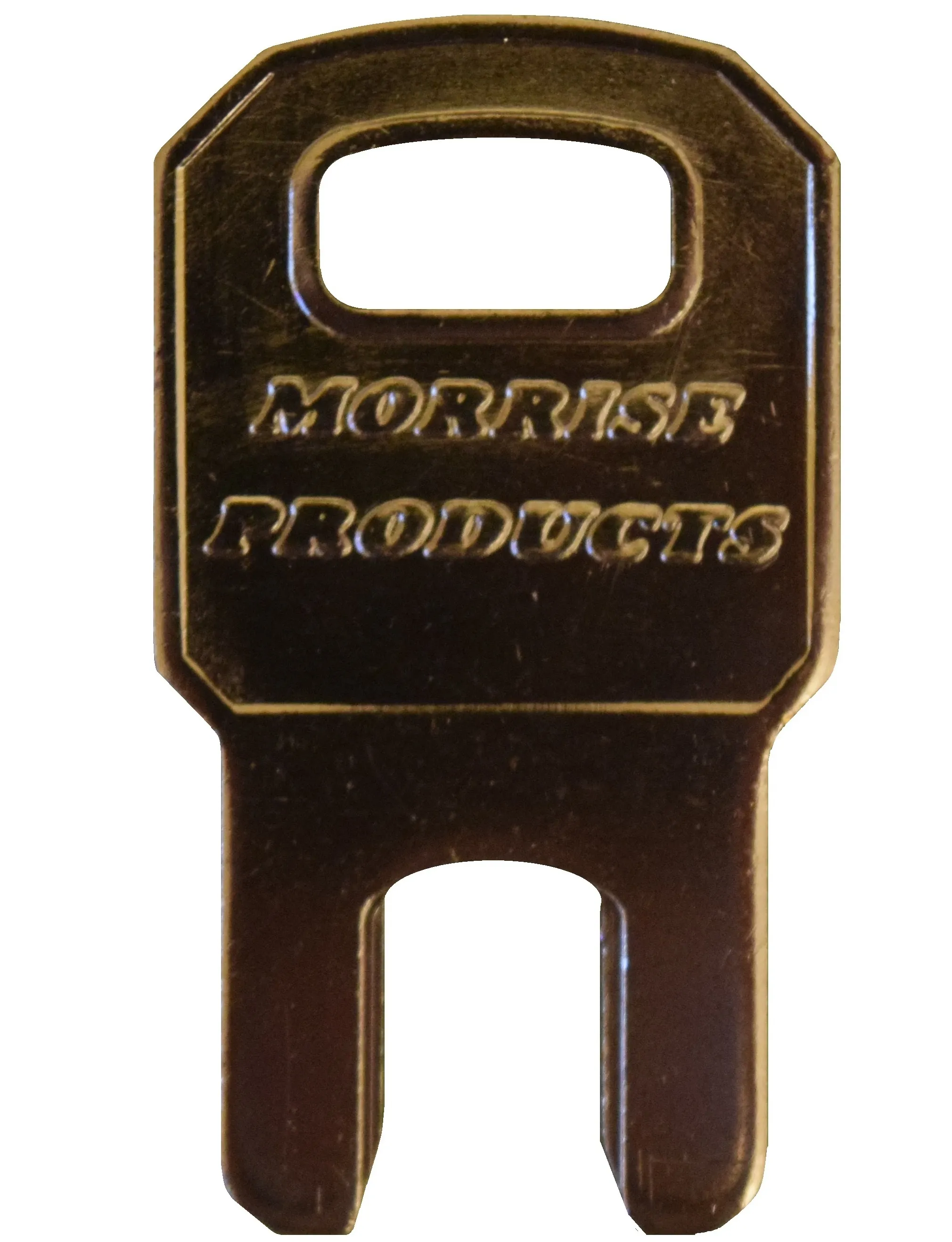

The flat brass-finished steel key, stamped “Morrise Products”, with a slotted tip and an oblong hole for a keyring. — FIG. 1bThe key. Slotted tip engages the splined stem; the oblong eye puts it on a keyring, where it actually stays.

Three-step line drawing: the spigot with its original handle, then the handle and screw removed exposing the splined stem, then the replacement cap fitted and the key inserted. — FIG. 1cThe whole install. Remove the handle and its screw, fit the cap, keep the key.

Retail blister card reading “Hose Spigot Child Proof System — Secure Your Outdoor Hose Spigot Instantly”, holding the stamped key, with install diagrams and a cog symbol below. — FIG. 1dRetail packaging. The handle-pattern limitation is printed on the front, not buried in the listing.

FIG. 1a
FIG. 1b
FIG. 1c
FIG. 1d

[ 01 ]

The Problem

An outdoor spigot sits at exactly toddler height, turns with almost no torque, and gives no feedback that it has been left running. The result ranges from a wasted afternoon of water to a flooded window well, to a supply line that freezes and splits over winter because a hose was left pressurised.

[ 02 ]

The Constraint

A cover or cage would have to be bigger than the valve, survive weather and UV, and still come off in one motion for an adult — a losing set of constraints. The inversion was to stop guarding the handle and remove it. The stock handle comes off with the single screw already holding it on; a low-profile cap takes its place, and the splined stem underneath becomes the interface. A flat steel key engages that stem to open the valve, and lives on a keyring the way a house key does. Nothing protrudes for a child to grip, and the frost-free drainage the sillcock depends on is untouched.

[ 03 ]

The Result

A spigot that looks finished rather than defended, and cannot be opened by hand at all. Installation is one screw. Because the key engages a splined cog, it fits the spigots that use that handle pattern — which the packaging calls out on the front rather than leaving the buyer to discover.
